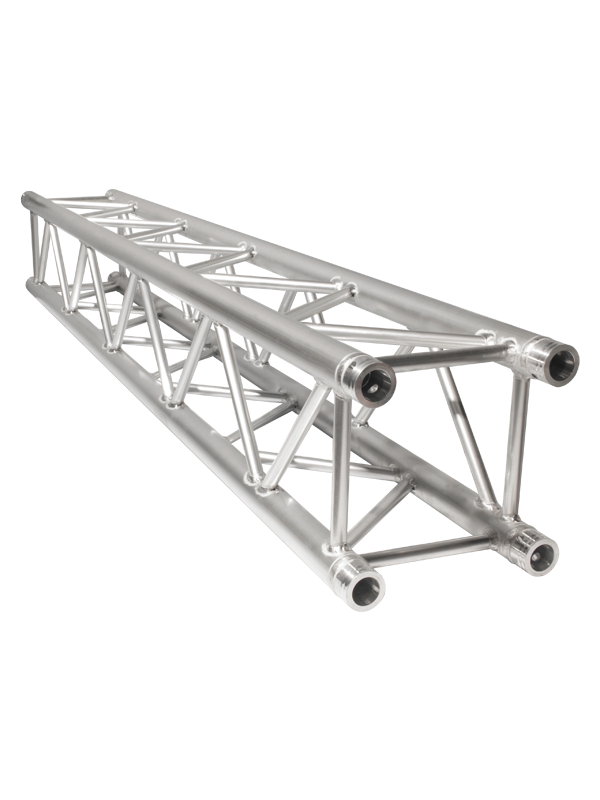

Chauvet TRUSST CT290-420S — 290mm Box Truss Straight Segment, 2.0m

The Chauvet TRUSST CT290-420S is a 2.0 m straight segment of 290 mm (12") box truss — the standard stick for spanning lighting rigs, goal posts, booth structures and displays.

Verified specs (per Chauvet):

• 290 mm × 290 mm square box truss, 2.0 m (6.56 ft) length; ~12 kg
• 6082-T6 alloy aluminum, fabricated by SLV-certified welders; each stick individually TUV certified
• 50 mm (2") main tubes with 20 mm diagonal bracing, 2 mm wall thickness
• Rated centerpoint load 2,072 kg (4,568 lb); distributed load 2,764 kg (6,093 lb) — per Chauvet's published chart for this segment
• Standard conical connection system — connector kit included; compatible with other major F34-pattern truss brands
• Works with the full TRUSST range of corners, junctions, base plates and clamps

Ideal for: the workhorse length for mobile entertainers, event production and permanent club or retail structures — combine with the 1.0 m segment and the truss accessories in our catalog to hit any span. Rigging guidance available from LAMIGA.
